🌡️ Direct-to-Chip Cooling vs. Immersion Cooling

🌡️ Direct-to-Chip Cooling vs. Immersion Cooling: What's the Difference?

As data centers grow more powerful and compact, the demand for efficient cooling solutions has skyrocketed. Two widely discussed technologies in high-performance computing (HPC) and AI workloads are Direct-to-Chip Cooling and Immersion Cooling. While both use liquid for heat dissipation, they differ fundamentally in method and application.

🔵 What is Direct-to-Chip (D2C) Cooling?

Direct-to-Chip Cooling, also known as direct liquid cooling, uses a coolant that flows through tubes into a cold plate that sits directly on top of the chip (CPU, GPU, etc.). The cold plate absorbs the heat, and the warmed fluid is transported to a heat exchanger or chiller system.

✅ Benefits of Direct-to-Chip Cooling:

• Targeted cooling: Only the hot components like CPUs and GPUs are actively cooled.

• Energy efficient: Reduced fan usage lowers power consumption.

• Lower PUE (Power Usage Effectiveness): Better overall data center energy performance.

• Compatible with traditional racks: D2C can retrofit into existing infrastructures.

🟢 What is Immersion Cooling?

Immersion Cooling involves submerging an entire server or rack into a non-conductive (dielectric) fluid. This allows every component of the server to be cooled simultaneously, without the risk of short circuits.

There are two main types:

1. Single-phase: The fluid stays liquid and transfers heat via a heat exchanger.

2. Two-phase: The fluid evaporates on contact with the chip, condenses, and drips back.

✅ Benefits of Immersion Cooling:

• Whole-system cooling: Cools all components, not just chips.

• Extremely efficient heat dissipation.

• Allows high-density rack configurations.

• Extended hardware lifespan: Reduced thermal stress.

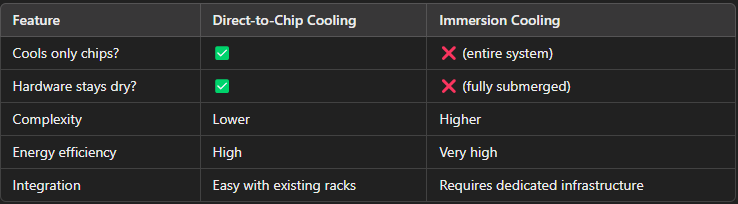

⚖️ Comparison: D2C vs. Immersion

🧠 Which One Should You Choose?

• Direct-to-Chip Cooling is perfect for data centers looking to boost cooling efficiency without major infrastructure changes.

• Immersion Cooling is ideal for next-gen HPC and AI deployments where maximum performance and energy savings are key.

🌍 Final Thoughts

Both technologies have a key role in the future of data center infrastructure. Your choice depends on your IT strategy, scalability goals, budget, and sustainability ambitions. With AI, edge computing, and green tech rising, advanced cooling is no longer a luxury—it's a necessity.
